Android UI Architecture Patterns
Dmitry Melnikov

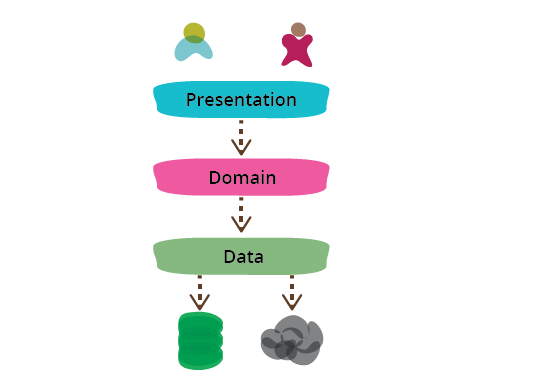

Presentation Domain Data Layering
https://martinfowler.com/bliki/PresentationDomainDataLayering.html
Logical layers
UI
- render
- ui interactions (no handling)
Application
- control flow
- handles ui interactions
Domain
- business logic
Infrastructure
- rest from domain layer (network, storage)

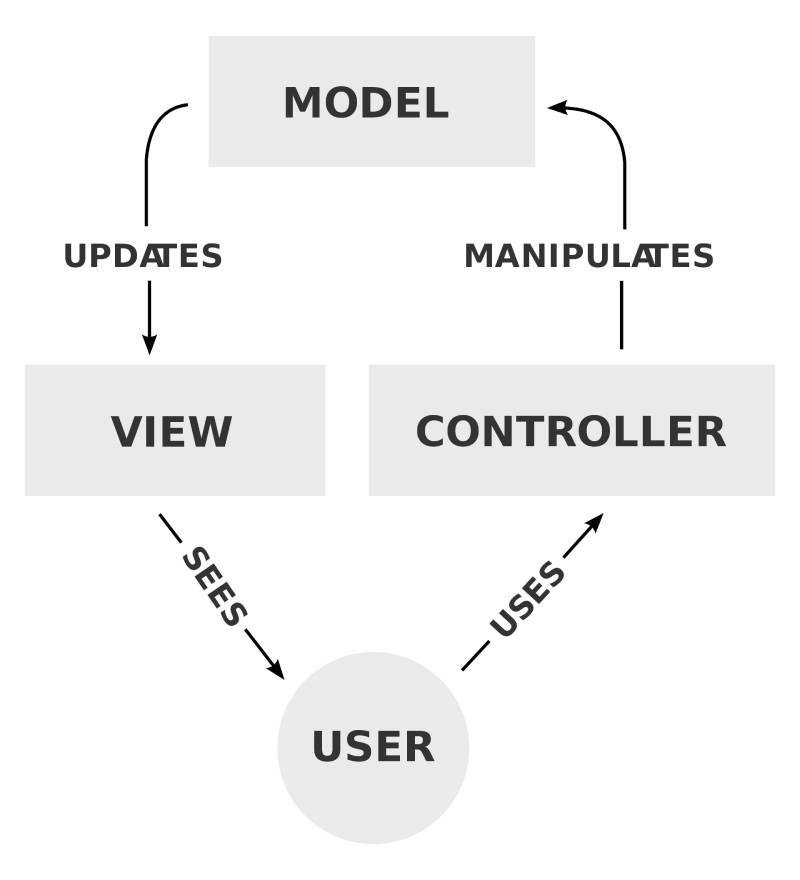

MVC/MVP/MVVM/MVI…
Model: state and/or business logic and/or data structures
View: user interface
X: Business logic and/or flow control logic and/or state and/or data structures
Android Architecture Blueprints

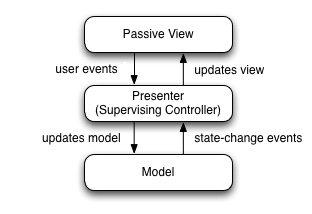

MVP official sample code review
git clone git@github.com:android/architecture-samples.gitgit checkout todo-mvpAndroid Architecture Blueprints
ಠ_ಠ
Too verbose View interface
View is a fragment
View calls Presenter! (from README.md view should be passive)
Presenter void result(int requestCode, int resultCode);
View is difficult to replace with alternative implementation
View is not reusable
View and Presenter tightly coupled
View has non-UI logic
=> MVP Architecture Blueprint is not MVP

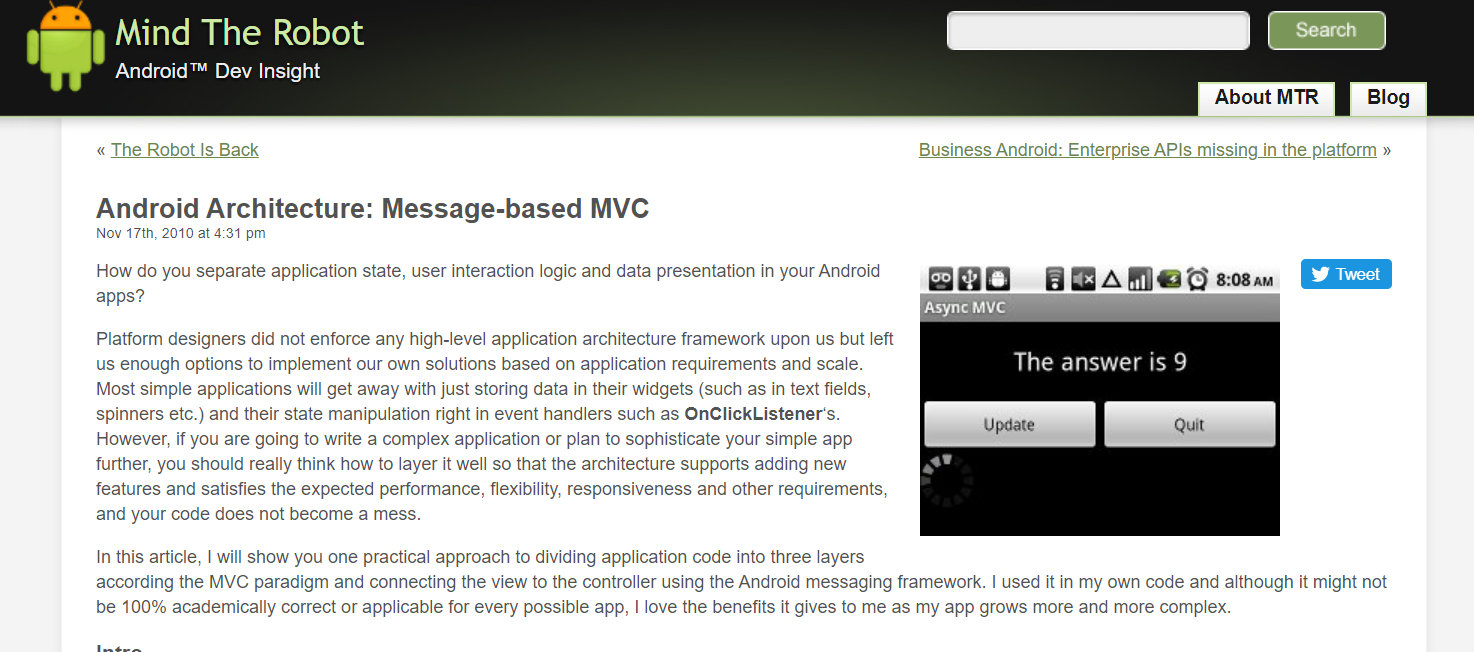

History
History
Thought 💡

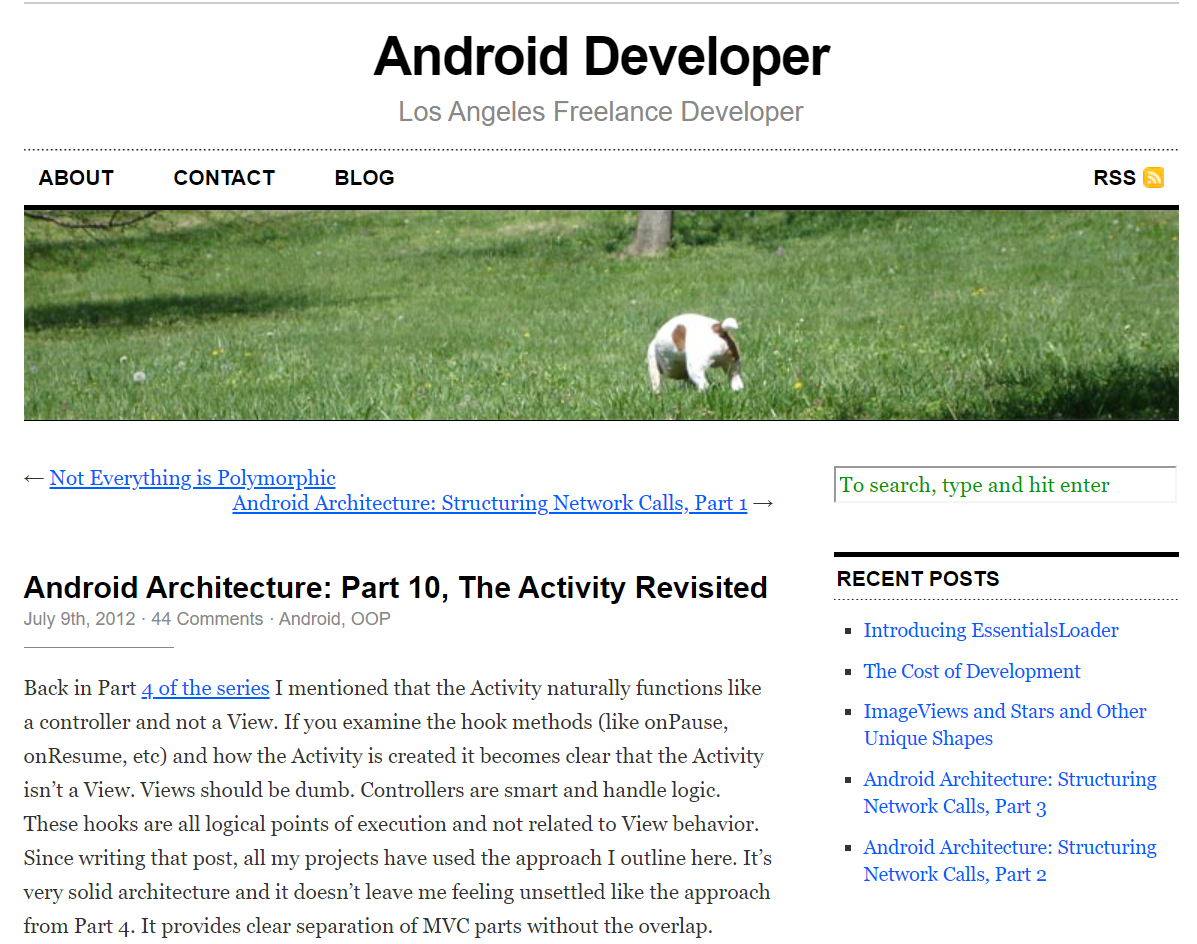

Activity not a View but more a Presenter/Controller
MVC/MVP/MVVM/MVI… benefits
MVC/MVP/MVVM/MVI… benefits
Testability... ?
MVC/MVP/MVVM/MVI… benefits
Testability... ?
No need for it if you don't unit test?
Better testability is just a byproduct.
MVC/MVP/MVVM/MVI… benefits
Testability... ?
No need for it if you don't unit test?
Better testability is just a byproduct.
The main benefit of MVx is a decoupled UI logic.
All MVx implementations have one common thing: UI logic in views.
UI logic
Responsibilities
- render system output
- capture user interactions with the UI and route them into the system.
Characteristics
- detailed and accurate requirements (UI mockups)
- much higher rate of change in most cases
- unreadable (verbose, messy, hacky, etc)
- easiest to test manually
- hardest to test automatically
MVC/MVP/MVVM/MVI… benefits
Decoupled UI logic is the main benefit
Activity/Fragment & UI logic
Example: outsourcing
UI specs + decoupled logic => Outsourcing company => MyActivity implements MyView
What about
- life-cycle
- screen navigation
- runtime permissions
- loaders
- fragments
- dialogs
- di
- more...
Activity is a God Object with lots of responsibilities.
Activity/Fragment & UI logic
It's difficult to integrate outsourced activity to an app. Activity is a God Object with many responsibilities.
It's almost impossible to decouple UI logic inside Activity.
Fragments are the same.

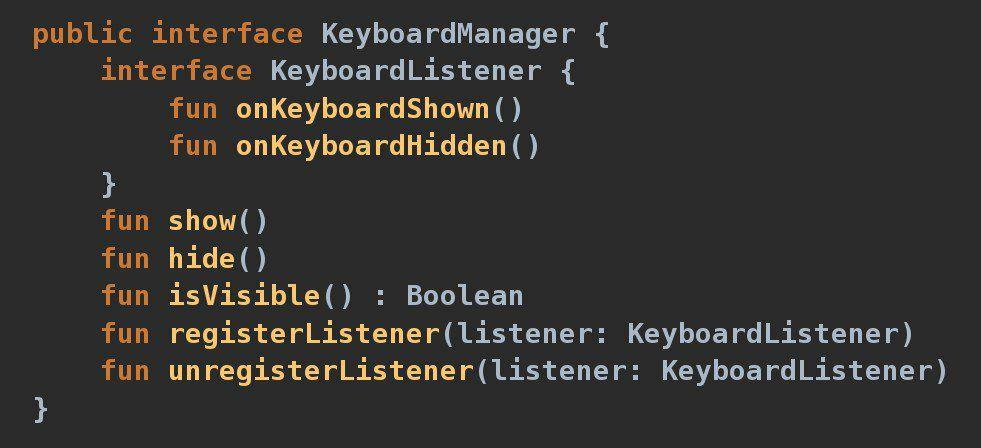

Extract UI logic to standalone class.
MyViewMvpImpl implements MyViewMvp. Obviously Activity is P.
Composition of several MyViewImpl.
Activity/Fragment & UI logic
+---------------+ | Interface | | MyViewMvp | <---------------- +-------|-------+ | | | +---------------+ +---------------+| | | MyViewMvpImpl || | | +-----------+ || Activity | | | | || | -------> | | UI logic | || | | | | || | | +-----------+ |+---------------+ +---------------+
My approach
2010 -> 2012 -> 2014 -> 2018
My approach is a variation of MVP
Droidcon NYC 2018 - Netflix's componentization architecture with RxJava + Kotlin
MVP Sample
git clone git@github.com:melnikovdv/android-arch-2.gitApp shows blog posts fetched from local cache or from remote server if not cached yet.
Better way is to implement everything the "bad way" and extract UI-logic in a real-time manner, but we have no time for it.
- blog item screen
- blog items screen
MVP Sample ideas
Single Activity
UI logic and business logic are separated
Separated MvpView helps to understand what view does
ListView + performance workaround with ViewHolder => RecyclerView
Application layer: Fragment
Decoupling layer: MvpView & Listener interfaces
UI Layer: MvpViewImpl
All the interactions in activity and fragments are high level and don't depend on implementation details.
It's a good abstraction when you can refactor without affecting dependent classes.
Why not Android View as MvpView
Why not use Android View class as MvpView?
Android views are not the best candidates for MvpView implementation.
Imagine inheritance level:
BlogItemMvpView -> MvpViewObservable -> MvpView -> FrameLayout -> ViewGroup -> View
Cons:
- inheritance of thousands of loc
- inheritance of 100+ methods
- standalone hierarchy for each ViewGroup
Effective Java, item 16: "Favour composition over inheritance".
MVP Sample summary
MVP views implement the MvpView interface with single rootView.
UI-actions calls corresponding presenters via listeners (observable).
MVP views can be nested.
Activities and fragments are not views, but presenters/controllers.
Android views aren't the best choice for MvpView.

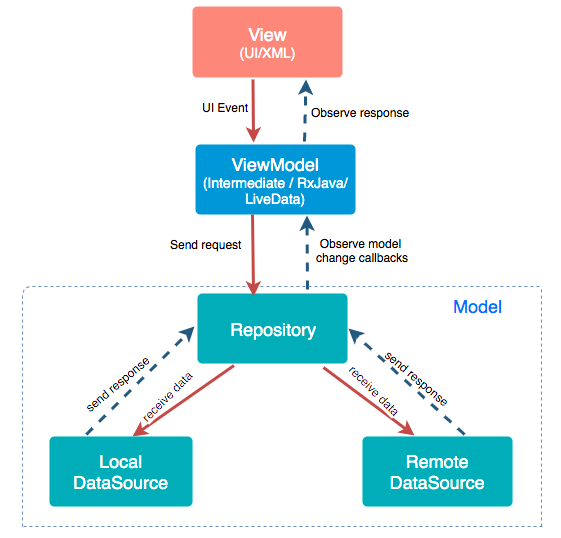

MVVM
MVVM official sample code review
git clone git@github.com:android/architecture-samples.gitFragments have a mix of ui logic and non-ui logic (e.g., navigation)
MVVM sample
git clone git@github.com:melnikovdv/android-arch-2.gitgit checkout 101d2e7With Data Binding
git clone git@github.com:melnikovdv/android-arch-2.gitgit checkout 433670fMVVM summary
Pros
- less code, especially with data bindings
- quick start (no need in custom code)
Cons
- heavily dependant on the framework (MPP)
- emphasizes usage of viewModels/liveData/fragments
- usually Activity/Fragment as a View
- views are difficult to reuse
- nested views are difficult
MVVM summary
They: tell me your wildest sexual fantasy!
Android Dev: 👇
MVI
MVVM + immutable state
MVP/MVVM FSM vs MVI state
MVC/MVP/MVVM/MVI… summary
Decoupled UI logic
Reuse of UI and application layer logic
Testability
No additional dependencies
Easy integration with dependency injection
Standardization of the code
MVC/MVP/MVVM/MVI… summary
Cons
Initial learning curve
Unfamiliar
A bit more code
